Wafer Tester List
Wafer Test Equipment

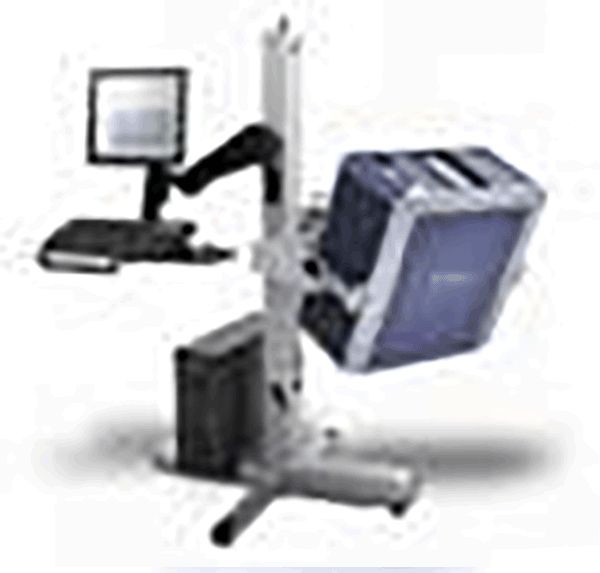

| Tester Model | Credence D-10 |
|---|---|
Machine |
 |
Max Frequency |
100 MHz |
Pattern Vector |
16M |
Max. Pin Count |
384 ~ 768 digital CH |
DPS |
16 Sets |
PMU Control |
Per pin PMU |
MW |
Audio/ 24 bits |
| Video/ 14 bits | |
VIS |
60V/ 100 mA |
NightHawk |
80 Mhz ~ 6 GHz |
Time Sets |
256 |
TG Resolution |
19.5 ns |
TG Width Limit |
ns |
User Relay |
64 |
Application |
Pure Digital |
| Mixed Signal | |
| RF | |
| Analog |

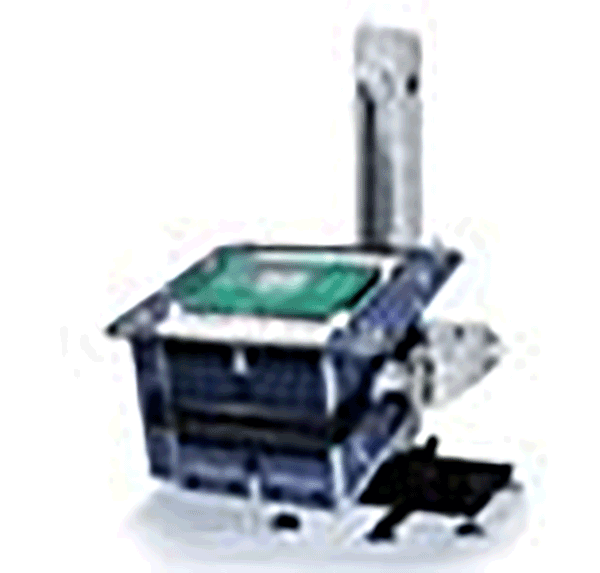

| Tester Model | Credence D-X |
|---|---|
Machine |
 |
Max Frequency |
100 MHz |
Pattern Vector |
32M |
Max. Pin Count |
960 ~ 1056 digital CH |
DPS |
32 Sets |
PMU Control |
Per pin PMU |
MW |
Audio/ 24 bits |
| ideo/ 14 bits | |
VIS |
60V/ 100 mA |
NightHawk |
10 MHz ~ 6GHz |
Time Sets |
256 |
Period Resolution |
76.293945 fs |
Period Range |
10 ns to 80 us |
User Relay |
64 (0~63) |
Application |
Pure Digital |
| Mixed Signal | |
| RF | |
| Analog |

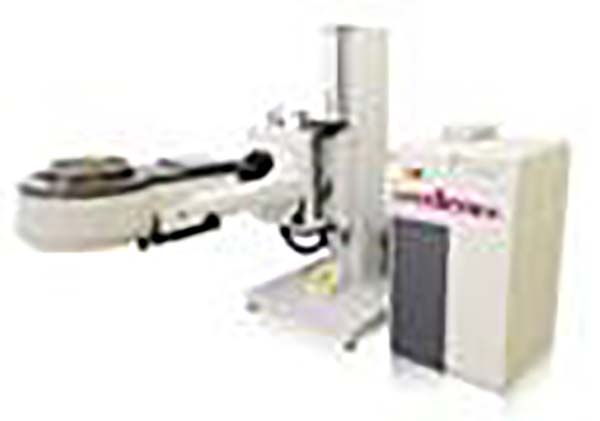

| Tester Model | Credence SC-312 |
|---|---|
Machine |
 |
Max Frequency |
50/100 MHz |
Pattern Vector |
4M |
Max Pin |
256 |
Time Sets |
4 |
TG Resolution |
500 ps |
TG width limit |
1ns |
User relay |
16 |
Work Station |
Sun sparc |
System Cooling |
Air |
Application |
High Pin Pure Logical IC |
| Consumer IC |
| Tester Model | Teradyne J750-EX |
|---|---|
Machine |
 |
Max Frequency |
200 MHz |
Pattern Vector |
64M |
Max. Pin Count |
512 ~ 1024 digital CH |
DPS |
16 ~ 32 Sets |
PMU Control |
Per pin PMU |
MSO |
Audio/ 24 bits |
| Video/ 14 bits | |
CTO |
1 |
DSIO |
4 |
CUB |
1 |
Application |
Pure Digital |
| Mixed Signal |

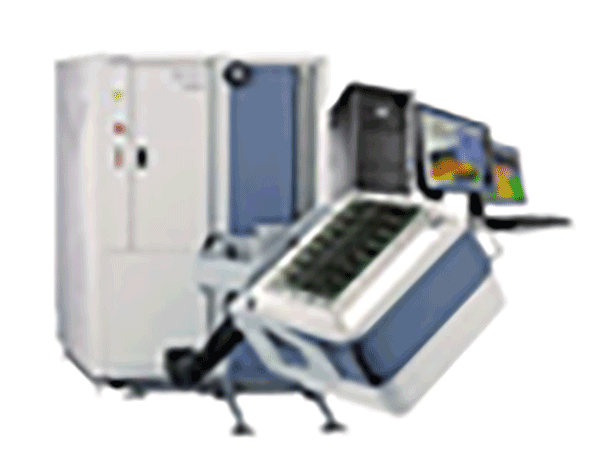

| Tester Model | HP HP93000 |
|---|---|
Machine |
 |
Max Frequency |
100MHz(up to 533Mhz by lic) |
Pattern Vector |
16M (Up to 112M by lic) |
Max pin Count |
384CH |
DPSs |
32+8Set |
PMU Control |
Per-pin + High precision PMU |
Waveform table |
256 |
User Relay |
256 |
Wafer Probers

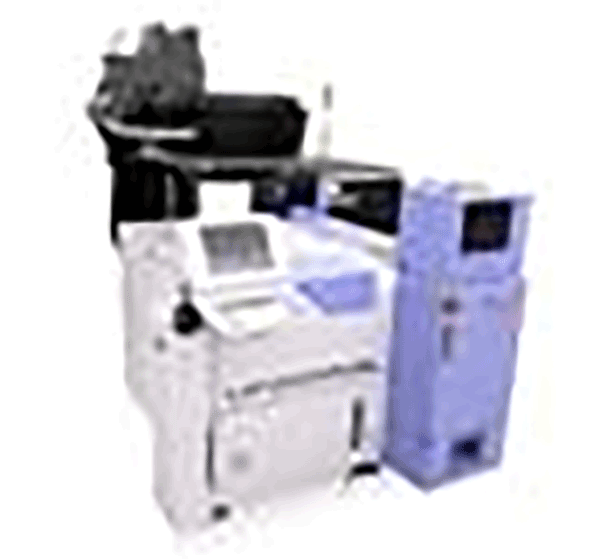

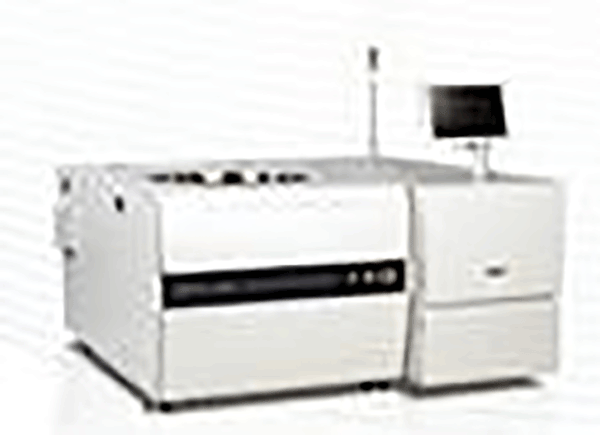

| Tester Model | UF200 | UF190 | OPUS3 |
|---|---|---|---|
Machine |
 |
 |
|
Wafer Size |
5"/6"/8" | 8"/12" | |
Temperature |
25~150°C | 25~150°C | |
Interface |
GPIB | GPIB | |

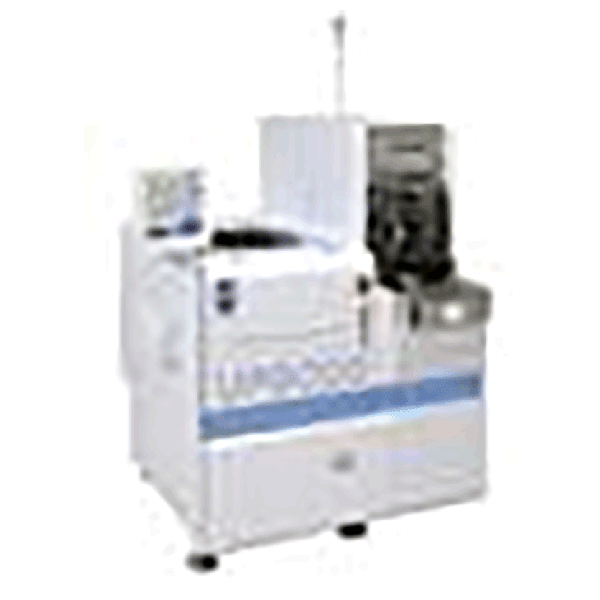

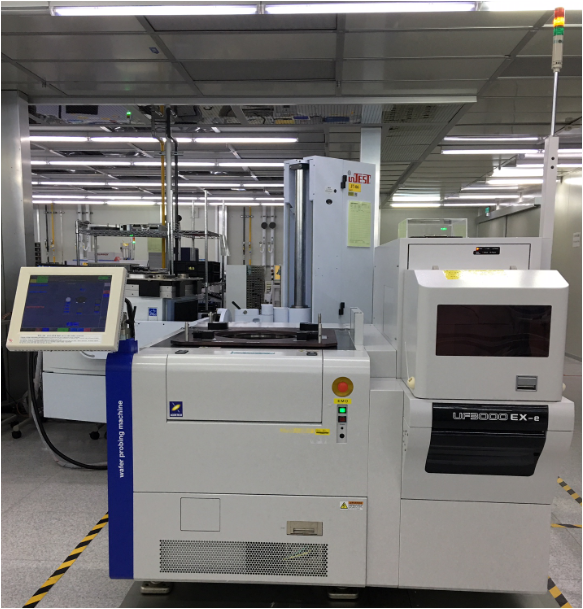

| Tester Model | UF3000 | UF3000EXE |
|---|---|---|
Machine |
 |
 |
Wafer Size |
8"/12" | 8"/12" |
Temperature |
-40~150°C | -40~150°C |
Interface |
GPIB | GPIB |
