測試機台介紹
測試機台

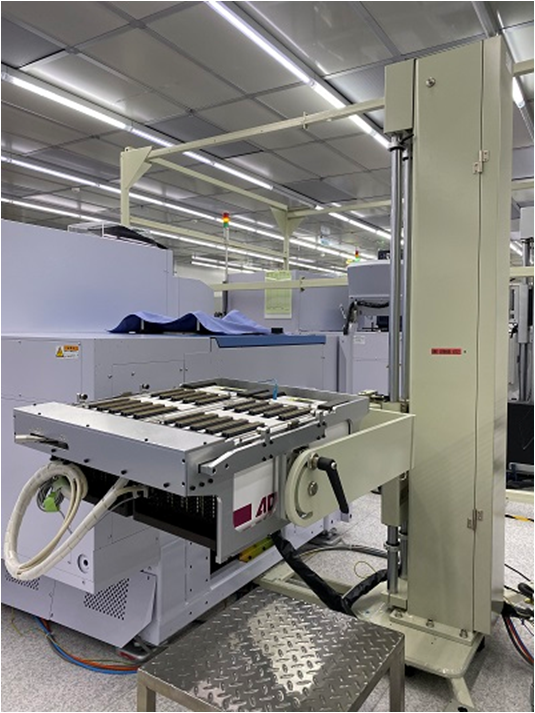

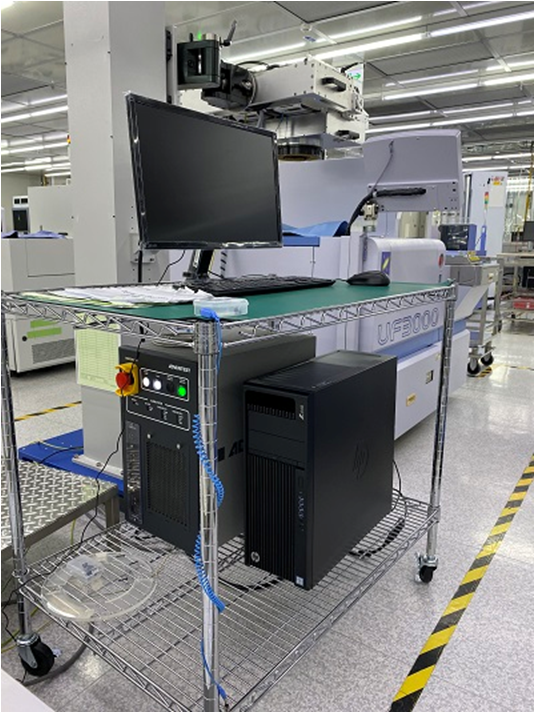

| Tester Model | EVA100 |
|---|---|
Machine |
|

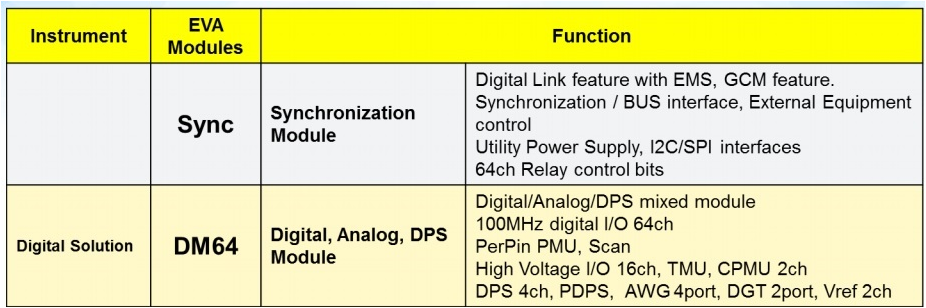

Summary |
|

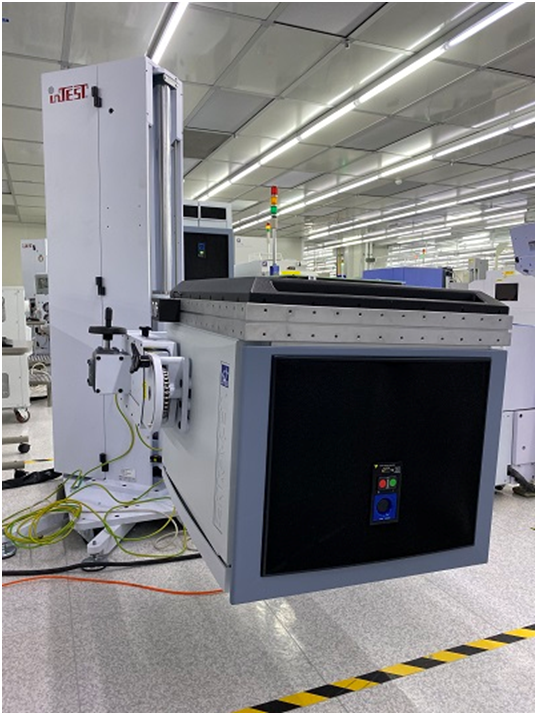

| Tester Model | J750EX 512ch test head |

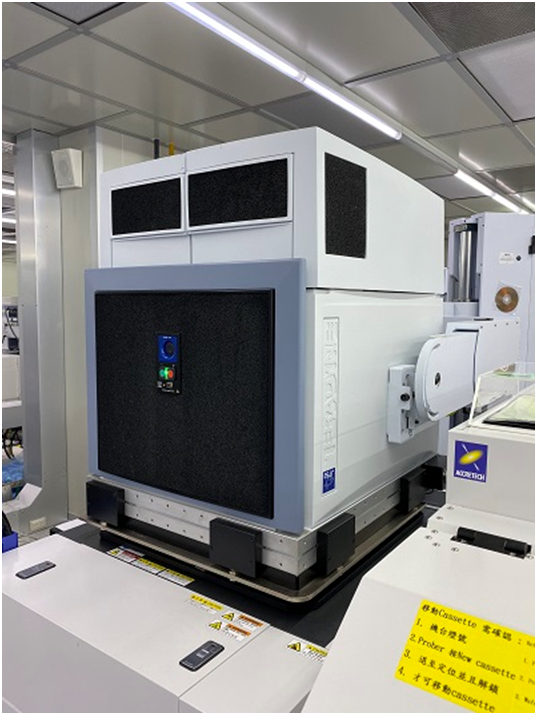

J750EX 1024ch test head |
|---|---|---|
Machine |
|
|
Summary |
1. HSD200 (channel board)
A. 64ch per board B. 512ch pure digital ,channel board X8 C. 1024ch pure digital ,channel board X16廠內 HSD200 (Speed 200Mhz, Memory 64M LVM) 2. DPS board (Device Power Supply)16 ch ,max X4 3. HDDPS (High Density Device Power Supply) 4. HDVIS (High Density Voltage/Current Source Option) 5. ASIO (Analog Signal I/O) or MSO (Mixed Signal Option) 6. DSMTO (Digital Signal Mixed Test Option) 7. Windows xp and Windows7 8. Tool: IG-XL 3.50.40 and 3.60.10 9. Interface : GPIB |
|

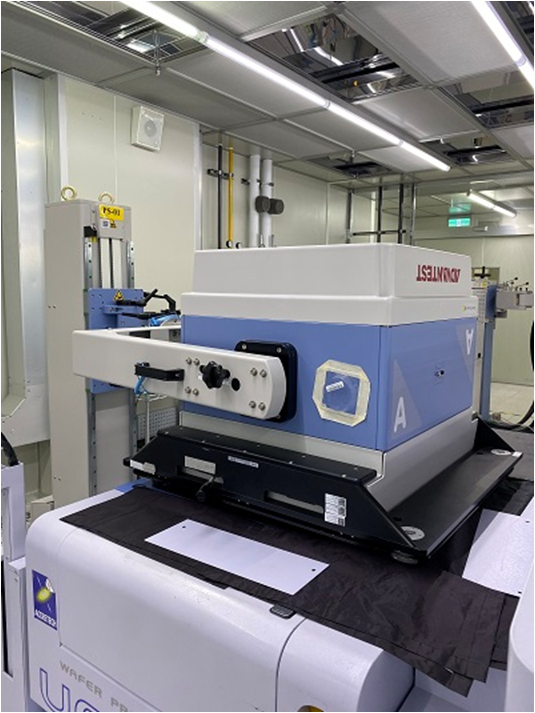

| Tester Model | HP93K (PS400,600,1600) |
|---|---|
Machine |
 |
Tester type |
1. ATH type: 8 digital cards (one card cage) 2. CTH type: 16 digital cards (two card cage) |
Summary |
1. HP93K Channel board
A. PS400 (pin Scale 400B) 64ch/per board B. PS1600 (pin Scale 1600B) 128ch/per board 2. DPS32 /DPS64 (7V / 1.5A) 3. MSDPS (-8 ~ 8V / 2A) 4. MCB (MBAV8) (Mixed signal) 5. 9G (Pin Scale 9G) 6. AVI64 (Analog ) 7. WSRF/WSMX (Wave Scale RF / Wave Scale MX) 8. Interface：GPIB |

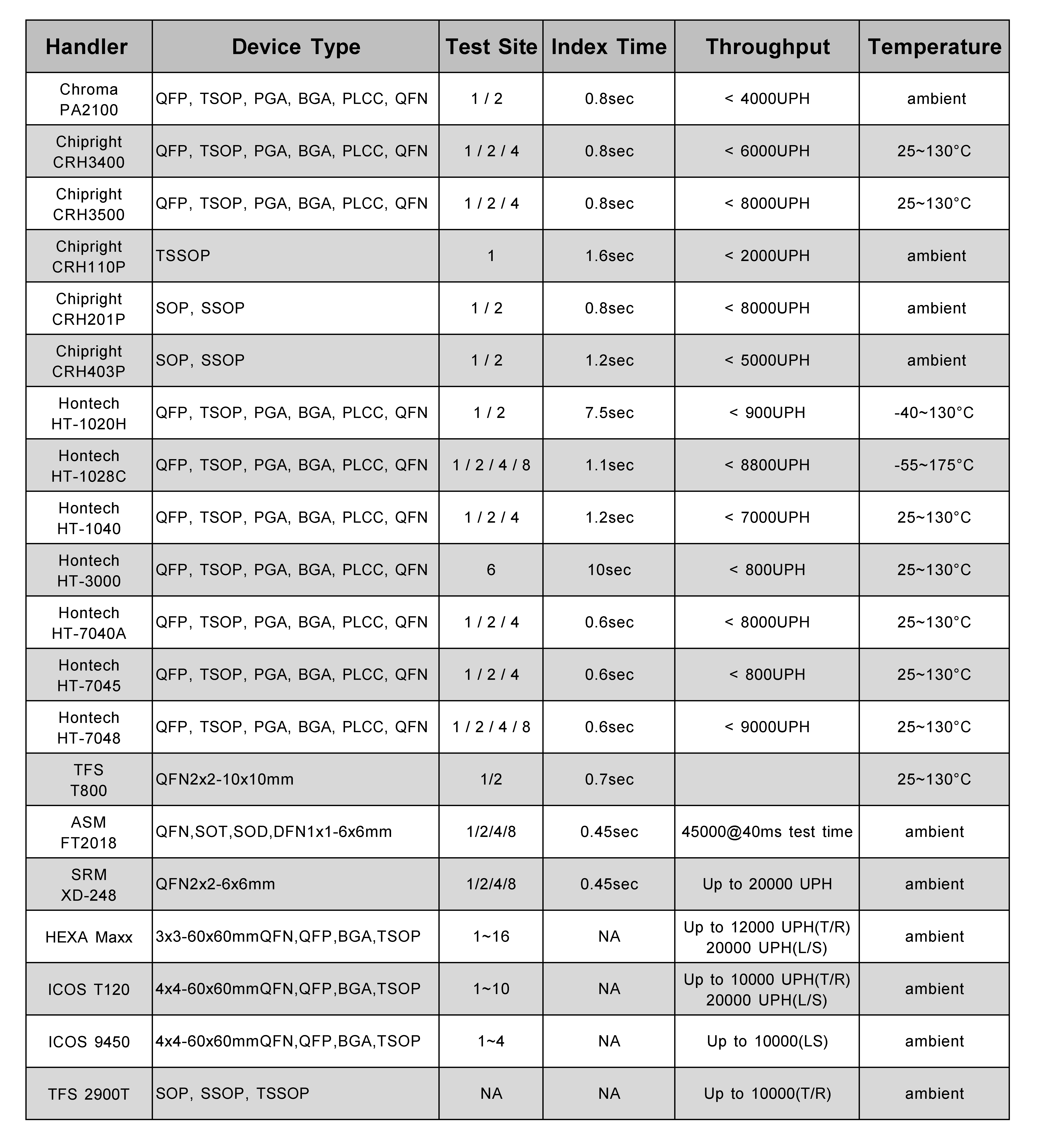

Final Tester List
